Y Series – High Voltage Generators

Powered by Yuchai | The Heavy-Duty Asian Titan (900kVA – 3000kVA)

The Enerzip® Y Series High Voltage line utilizes the brute strength of Yuchai Machinery, China’s largest and most experienced independent engine manufacturer. Powered by the advanced YC12VC and YC16VC heavy-duty engine platforms, these units deliver a perfect combination of robust torque, high fuel efficiency, and long-term durability. Enerzip® integrates these engines with premium VPI-insulated alternators and professional switchgear to create High Voltage Generators (3.3kV – 11kV) that serve as the preferred workhorses for mining, manufacturing, and real estate projects demanding premium reliability without the premium price of Western brands. For platform comparison and selection guidance across Enerzip’s full High Voltage Generators portfolio, you may also explore the High Voltage Generators Sets Series.

1. The Power Core: Yuchai Heavy-Duty Platform

The heart of the Y Series is the Yuchai V-Type engine (YC12VC / YC16VC), engineered for continuous heavy loads.

• Structural Integrity: Yuchai engines are famous for their high-strength alloy cast iron body and monolithic forged steel crankshaft. This extremely rigid structure reduces vibration and ensures a service life (Time Between Overhauls) that often exceeds 25,000 hours, making them ideal drivers for High Voltage Generators.

• Smart Efficiency: Featuring advanced electronically controlled high-pressure common rail technology and 4-valve cylinder heads, the Y Series optimizes combustion for superior fuel economy, lowering the total Operational Expenditure (OPEX).

• High Torque Performance: Yuchai engines are renowned for their exceptional loading capability and fast response times, making them ideal for starting heavy industrial motors.

2. Starting Systems: Guaranteed Start

• Heavy-Duty Electric Start: We utilize dual 24V electric starting motors to ensure redundancy and rapid cranking speed.

• Cold Weather Performance: Equipped with high-CCA maintenance-free batteries (VARTA/Camel) and integrated coolant heaters. This ensures the engine block remains at the optimal temperature for instant starting, even when ambient temperatures drop below freezing.

• Battery Health: Intelligent floating chargers monitor voltage levels continuously to prevent battery failure during standby.

3. HV Alternator: The Art of Insulation

Generating high voltage requires specialized engineering to prevent electrical breakdown.

• Form-Wound Coils: Our High Voltage Generators utilize alternators from LEROY SOMER, STAMFORD, or ENGGA featuring Form-Wound Coils. Unlike random-wound low-voltage coils, these pre-formed, rigid coils provide superior mechanical strength and thermal endurance.

• VPI Technology: Every stator undergoes Vacuum Pressure Impregnation (VPI). This process forces resin into every crevice of the winding, creating a solid, void-free insulation barrier that is impervious to moisture, dust, and salt spray.

• Anti-Condensation: Heaters are installed to keep the windings dry during standby.

4. Control & Switchgear: Grid-Level Protection

Safety is non-negotiable for high-voltage systems.

• Integrated HV Switchgear: The Y Series includes a professional switchgear cubicle housing a Vacuum Circuit Breaker (VCB) from ABB or Siemens. VCBs are essential for High Voltage Generators as they provide rapid arc quenching and safe fault isolation. For general reference on medium-voltage fault interruption devices, buyers may also review primary vacuum circuit breakers.

• Advanced Logic: Utilizing ComAp (InteliGen) or DEIF controllers, the system offers comprehensive protection (Overcurrent, Earth Fault, Reverse Power) and automatic grid synchronization capabilities.

• Digital Monitoring: Operators can monitor oil pressure, coolant temperature, and electrical parameters remotely via Modbus or Ethernet.

5. Cooling Systems: 50°C Tropical Grade

• Oversized Radiators: We standardize on radiators designed for 50°C ambient temperatures. This ensures the Yuchai engine can deliver its full rated power even in the hottest tropical climates or desert environments.

• Split-Core Design: For larger models (2000kVA+), we often use split-core remote radiators to optimize cooling efficiency for the jacket water and intercooler circuits.

6. Frame & Fuel Tank: Engineered for Stability

• Rigid Base Frame: Manufactured on Enerzip’s robotic welding line, the chassis is reinforced to support the heavy engine and HV alternator without flexing.

• Vibration Isolation: High-efficiency anti-vibration mounts decouple the engine from the frame, protecting the sensitive HV switchgear and ceramic insulators from mechanical stress.

• Fuel Connection: Due to the large capacity, Y Series units typically feature connection points for external bulk fuel tanks, though base tanks are available for smaller models.

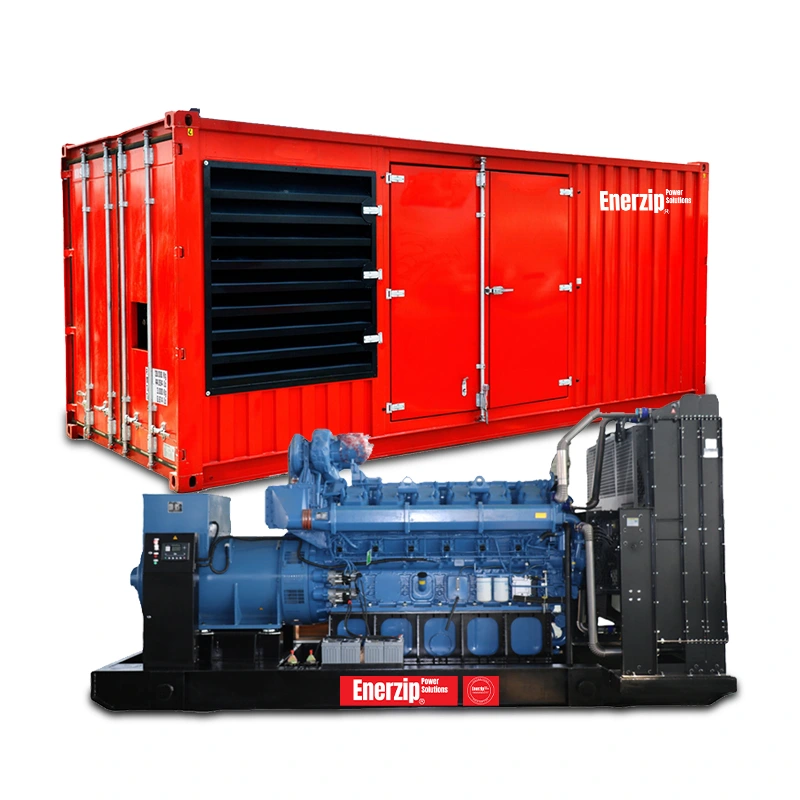

7. Containerized Solutions: The “Power House”

For outdoor HV applications, the Y Series is typically deployed in Enerzip® ISO Containers.

• Separate HV Room: The container features a partitioned, air-conditioned room specifically for the HV Switchgear and Control Panel. This ensures operator safety and component longevity by isolating them from engine heat and noise.

• Cable Marshalling: Dedicated high-voltage cable entry boxes facilitate the safe and easy termination of heavy armored cables.

8. Exhaust & Emission: Clean & Quiet

• Acoustic Silencing: We install high-attenuation industrial silencers to bring noise levels down to acceptable standards for industrial zones.

• Clean Combustion: Yuchai’s advanced combustion technology ensures low smoke and compliance with standard industrial emission regulations.

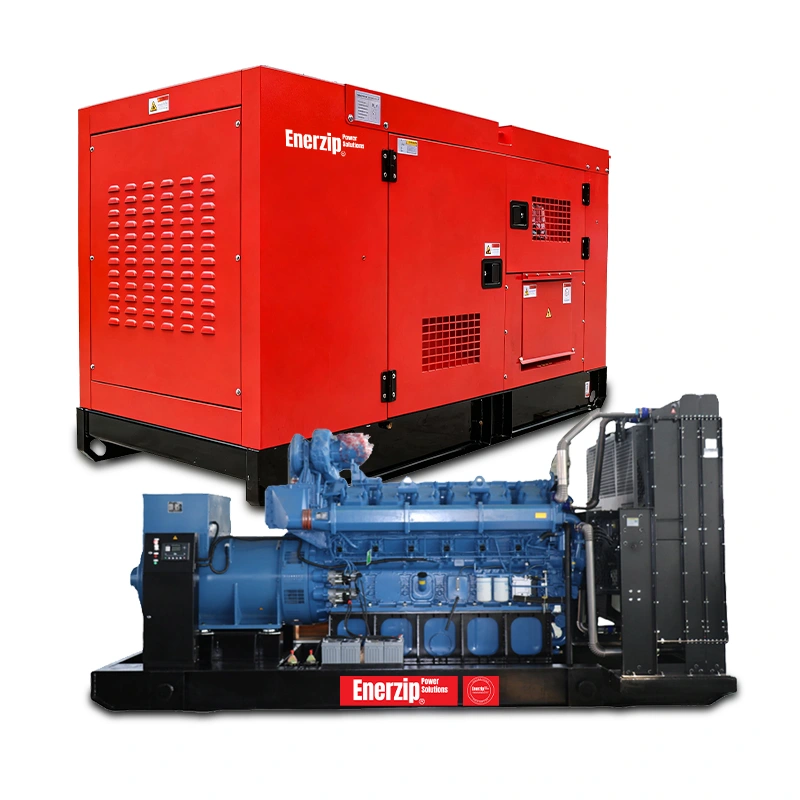

9. Silent Canopy: Weather Defense

• Corrosion Protection: Our enclosures use an advanced multi-stage powder coating process, offering superior durability against UV rays and rain compared to wet paint.

• Sound Attenuation: Lined with high-density acoustic foam, the canopy effectively suppresses mechanical noise.

Power Ratings (kVA)

The Y Series offers a robust range of power outputs:

• Medium-High Range: 900, 1000, 1125, 1250 kVA

• Heavy Duty Range: 1500, 1650, 1875, 2000, 2250 kVA

• Ultra-Large Range: 2500, 2750, 3000 kVA

Technical Specification Matrix (Y Series HV)

Why Enerzip® Y Series High Voltage Generators?

The Enerzip® Y Series proves that premium reliability doesn’t have to come with a prohibitive price tag. By leveraging Yuchai’s massive manufacturing scale and heavy-duty engineering, we offer High Voltage Generators that are incredibly tough, fuel-efficient, and cost-effective to maintain. Whether powering a remote mine in Africa or a factory in Southeast Asia, the Y Series delivers the consistent high-voltage power you need to keep operations running smoothly.
