M Series – High Voltage Generators

Powered by MTU (Rolls-Royce Solution) | German Precision & Instant Response (275kVA – 3000kVA)

The Enerzip® M Series represents the absolute gold standard in mission-critical power. Powered by world-renowned MTU (Motoren- und Turbinen-Union) engines—a Rolls-Royce solution—these units are engineered for hyperscale data centers and semiconductor plants where downtime is simply not an option. Enerzip® adopts a “System-First” philosophy, integrating German engineering precision with our heavy-duty manufacturing standards. The result is a fleet of High Voltage Generators (3.3kV – 13.8kV) that delivers not just megawatt-class power, but instant load response and unwavering stability for massive facility campuses. For platform comparison and selection guidance across Enerzip’s full High Voltage Generators portfolio, you may also explore the High Voltage Generators Sets Series.

1. The Power Core: MTU German Precision

The heart of every M Series unit is a legendary MTU engine (Series 1600, 2000, or 4000), manufactured to the highest German standards.

• Instant Load Acceptance: In mission-critical environments, speed is everything. MTU engines are famous for their ability to accept 100% rated block load in a single step while maintaining tight frequency tolerances (ISO 8528-5 G3). This ensures critical servers experience zero disruption during grid failures. For general reference on generating-set performance criteria, buyers may also review the ISO 8528-5 performance standard.

• ADEC Intelligence: Featuring MTU’s proprietary ADEC (Advanced Diesel Engine Control) system, the engine self-optimizes fuel injection hundreds of times per second, ensuring maximum power density and fuel efficiency.

• Long TBO: MTU engines are renowned for their longevity, offering extended Time Between Overhauls (TBO), significantly lowering long-term OpEx.

2. Starting Systems: Redundant & Rapid

For High Voltage Generators supporting critical infrastructure, failure to start is not an option.

• Redundant Starters: On larger Series 4000 models, we deploy dual redundant electric starting motors.

• High-Capacity Batteries: We equip every unit with high-performance, maintenance-free batteries (VARTA or Camel) with ample Cold Cranking Amps (CCA) to ensure reliable ignition even in extreme cold (-20°C) without external heating.

• Battery Charging: Smart floating chargers are standard, ensuring batteries remain at peak charge 24/7.

3. HV Alternator: The Art of Insulation

Generating high voltage requires superior insulation technology. We partner with LEROY SOMER, MARATHON, and ENGGA for our HV alternators.

• Form-Wound Coils: Unlike low-voltage units, our High Voltage Generators utilize rigid, pre-shaped Form-Wound Coils. These are mechanically stronger and better suited to withstand thermal expansion.

• VPI Technology: Every stator undergoes Vacuum Pressure Impregnation (VPI). This process forces resin deep into the windings, creating a void-free insulation barrier impervious to moisture, dust, and salt spray.

• Bearing Protection: Insulated bearings are standard to prevent shaft currents from causing premature failure.

4. Control & Switchgear: Grid-Level Protection

Managing megawatts of high voltage requires sophisticated logic.

• High Voltage Switchgear: We integrate professional switchgear featuring Vacuum Circuit Breakers (VCB) from ABB or Siemens. These provide rapid arc-quenching and superior fault isolation capabilities compared to air breakers.

• Smart Synchronization: Utilizing ComAp (InteliGen) or DEIF controllers, the M Series can automatically synchronize with the grid for peak-shaving or parallel with other High Voltage Generators to form a massive power plant.

• Comprehensive Protection: Full ANSI-coded protection (50/51 Overcurrent, 51G Earth Fault, 32 Reverse Power) ensures the safety of your expensive high-voltage distribution network.

5. Cooling Systems: 50°C Tropical Grade

MTU engines are power-dense and require efficient thermal management.

• Split-Circuit Cooling: Many M Series models feature separate cooling circuits for the engine jacket water and the Charge Air Cooler (CAC), optimizing combustion efficiency.

• Ambient Mastery: We use oversized radiators standardized for 50°C ambient temperatures. Whether in a hot desert mining site or a tropical data center, the M Series runs at full load without de-rating.

6. Frame & Fuel Tank: Built for Stability

• Heavy-Duty Chassis: Manufactured on Enerzip’s own Heavy-Duty Sheet Metal Line, the base frame is reinforced to support the immense weight of the engine and HV alternator.

• Vibration Isolation: We use high-efficiency rubber/spring isolators. This is critical for High Voltage Generators to protect the sensitive ceramic insulators in the switchgear from engine vibration.

• Integrated Tank: For smaller models, a fuel tank is integrated into the base. For larger containerized units, we provide auto-refilling systems connected to external bulk tanks.

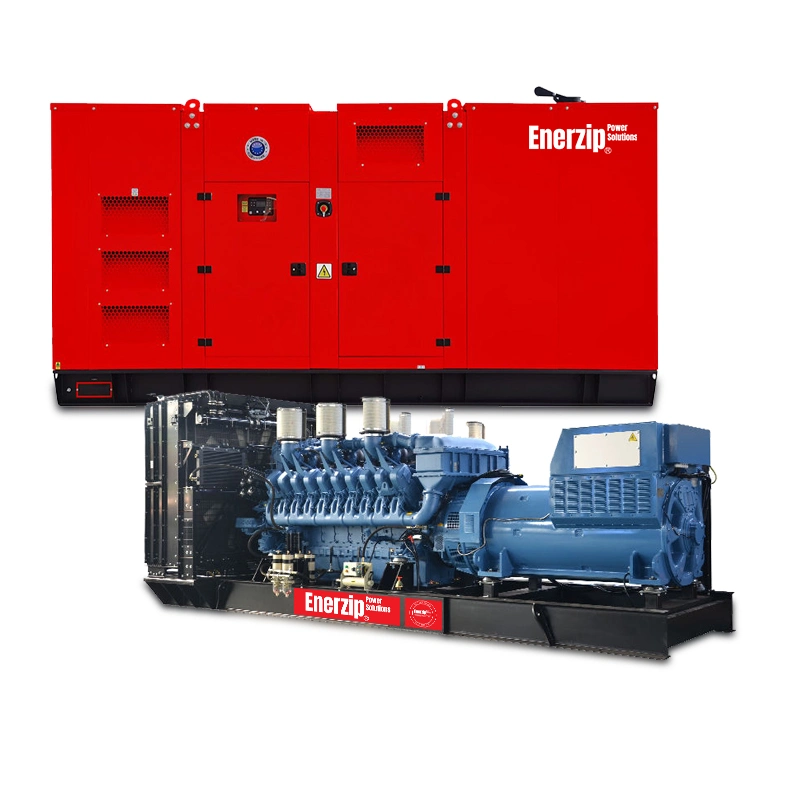

7. Containerized Power: The “Power House”

For the M Series (typically high power), we offer specialized ISO container solutions.

• Separate HV Room: Our 40ft containers feature a partitioned, air-conditioned room specifically for the High Voltage Switchgear and Control Panel. This allows operators to monitor the system in a safe, quiet environment separate from the noisy engine bay.

• Cable Marshalling: Specialized high-voltage cable entry boxes are designed for the easy termination of heavy, armored HV cables.

8. Exhaust & Emission: Clean & Quiet

• Acoustic Silencing: We utilize high-attenuation residential-grade silencers to reduce the massive exhaust noise of high-horsepower engines.

• Emission Compliance: The M Series is optimized for low NOx emissions. For strict regions, we can integrate SCR (Selective Catalytic Reduction) systems to meet Tier 4 or Stage V standards.

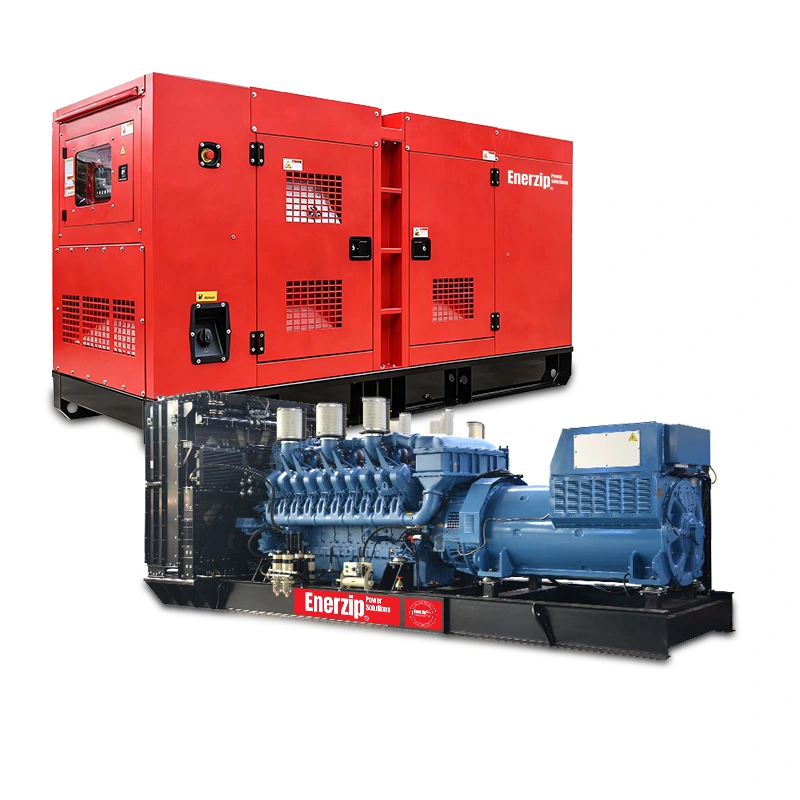

9. Silent Canopy: Corrosion Defense

For outdoor installation without a container:

• Advanced Powder Coating: Our canopies undergo a multi-stage spray-plastic process, creating a finish that resists UV fading and corrosion for decades.

• Super Silent: High-density sound-absorbing rock wool ensures that despite the massive power, noise levels remain compliant with urban regulations.

Technical Specification Matrix (M Series HV)

Why Enerzip® M Series High Voltage Generators?

Choosing the Enerzip® M Series is an investment in absolute certainty. For facilities that power the digital economy, “good enough” is not enough. The combination of MTU’s legendary instant load response, VPI insulation technology, and Enerzip’s robust packaging creates High Voltage Generators that provide the ultimate shield against power failure. When seconds count and megawatts are on the line, the M Series delivers.
